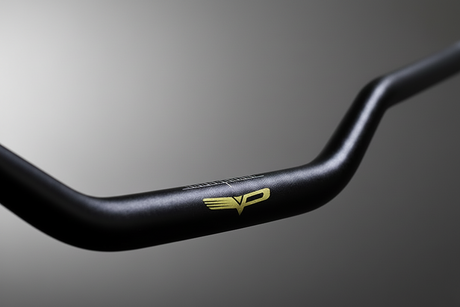

SPECS
Construction
Constructed from 2014-T6 aluminum
Height
Four height options (70mm, 80mm, 90mm, 100mm)
Sweep
50mm and 55mm sweep options to keep your elbows in proper riding position
Width
800mm width (with laser-etched cut-lines for trimming to desired width)
Control Area
200mm on the control area to accommodate grips, map switches, levers, etc.
Clamp Area
1-1/8" (28.6mm) oversized clamp area
Not sure which bars are right for you?
We make finding the perfect handlebars simple.
Use our TRU•RIDE Bend Selector to find out what is right for you.
Check out the cross reference chart to see how 118 bars compare with other bends on the market.
HEIGHT
Four different rises allow for an easier choice in finding the right bar for your motorcycle. It is not a hard and fast rule that your height means you need a particular rise. It’s a personal preference for those that want a shorter bar or one that is quite a bit taller. We are here to assist in finding the right bar height.
options: 70mm - 80mm - 90mm - 100mm
SWEEP
Keeping your elbows up is critical to control your bike. The 118 is offered in both 50mm and 55mm options to suit your preference.
WIDTH
Laser-etched cut-lines on the ends of the bars help for those that are dodging tight trees and need to shave off metal. Or maybe you simply feel the 800mm (31.5”) width feels too wide. Measure twice, cut once, install grips, go ride.
CLAMP AREA
The oversized clamp area is 1-1/8”(28.6mm) to allow for a tapered design that creates strength while eliminating the crossbar clamp to allow added flexibility. What that means is your arms take a little less punishment and your day of riding goes on a little longer.
